NM-ATGM336H GPS+BDS Dual-mode module, satellite position Plug and Play for CYDs

Features

The NM-ATGM336H GPS+BDS moudle, is optimized for CYD devices with plug-and-play, will replace the old version and  NEO-M8N.

It delivers fast satellite acquisition, high sensitivity, and stable positioning even in weak signal environments.

Compact and widely compatible with development boards, IoT devices, robotics, and vehicle tracking applications, this module offers strong anti-interference performance and low power consumption for reliable long-term use.

Plug-and-Play design.

Product Introduction

NM-ATGM335H module is high-performance BDS/GNSS full constellation positioning and navigation module series. This module based on the 4th-generation low-power GNSS SOC single chip of zhongke micro chip AT6558, which support a variety of satellite navigation systems, including BDS ( Beidou Satellite Navigation System), the United States' GPS.

AT6558 is a true six-in-one multi-mode satellite navigation and positioning chip, including 32 tracking channels, which can receive GNSS signals from six satellite navigation systems at the same time, can realize joint positioning, navigation and timing.

Product parameter

Package

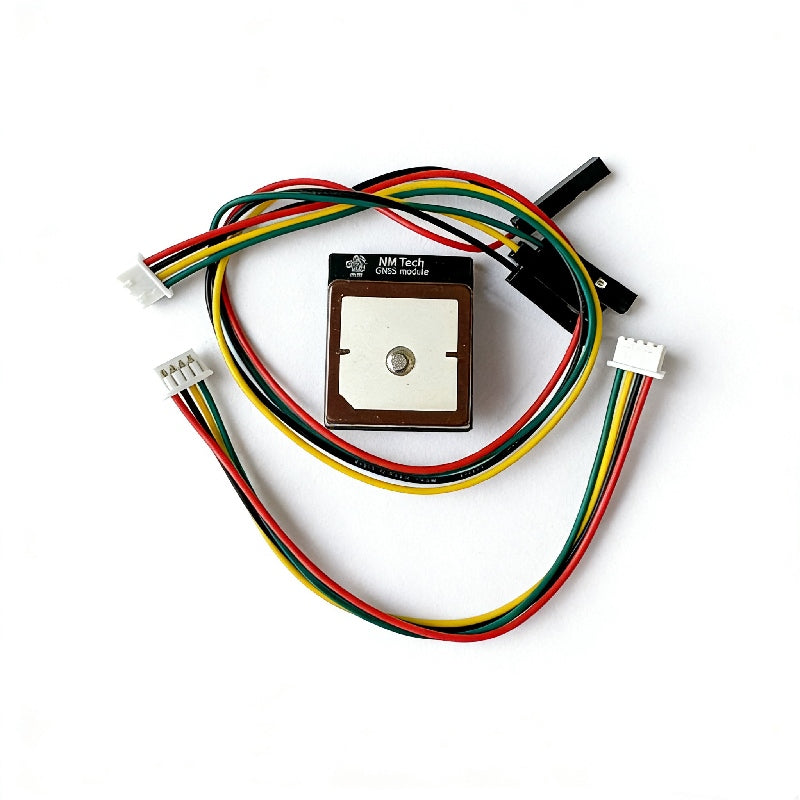

NM-ATGM336H * 1, cable * 2
