RockBase IoT

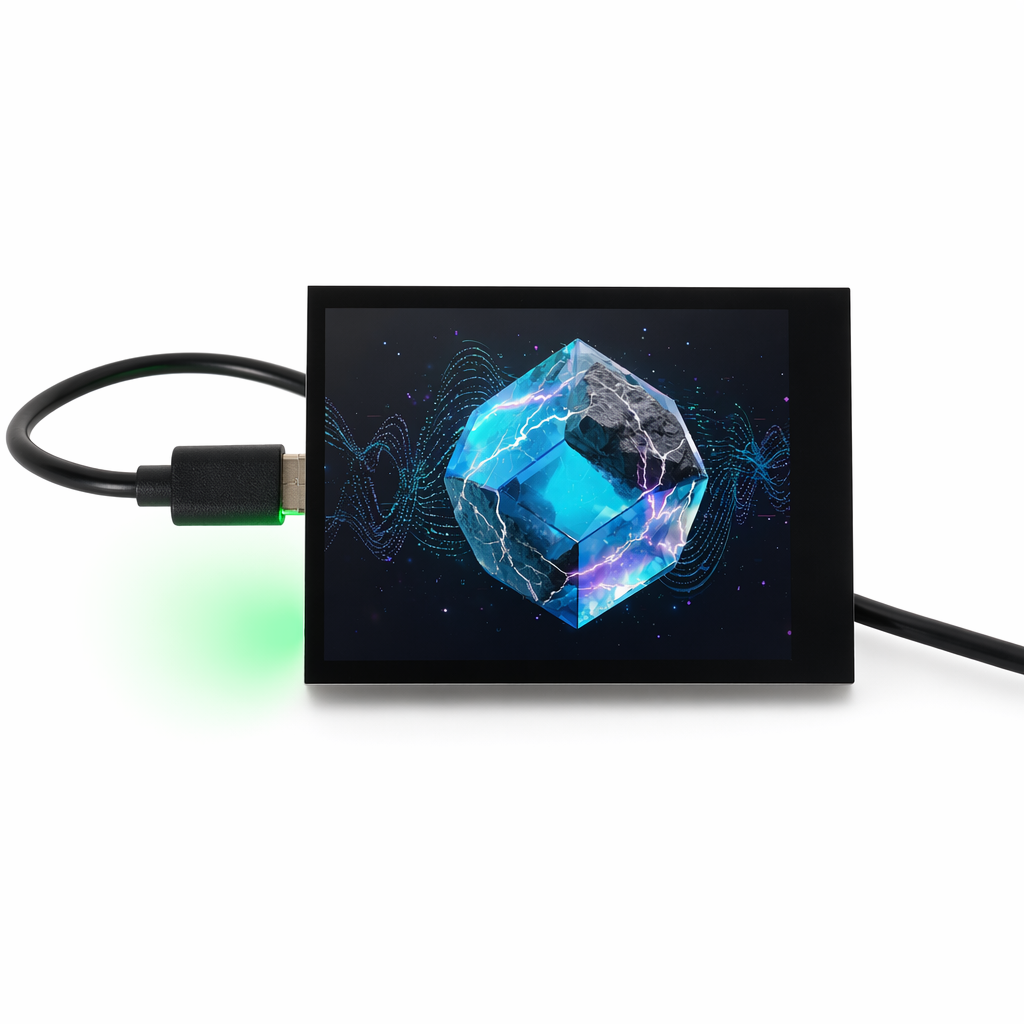

NM-Display-28inch ESP32-S3 2.8inch Display 320*240 IPS 32bit LX7 Dual-core Processor
NM-Display-28inch ESP32-S3 2.8inch Display 320*240 IPS 32bit LX7 Dual-core Processor
定價
$27.90 USD
定價
$31.90 USD
售價
$27.90 USD
單價
每個品項 $1.27
已包含稅額。
數量
無法載入取貨服務供應情況
Product Features

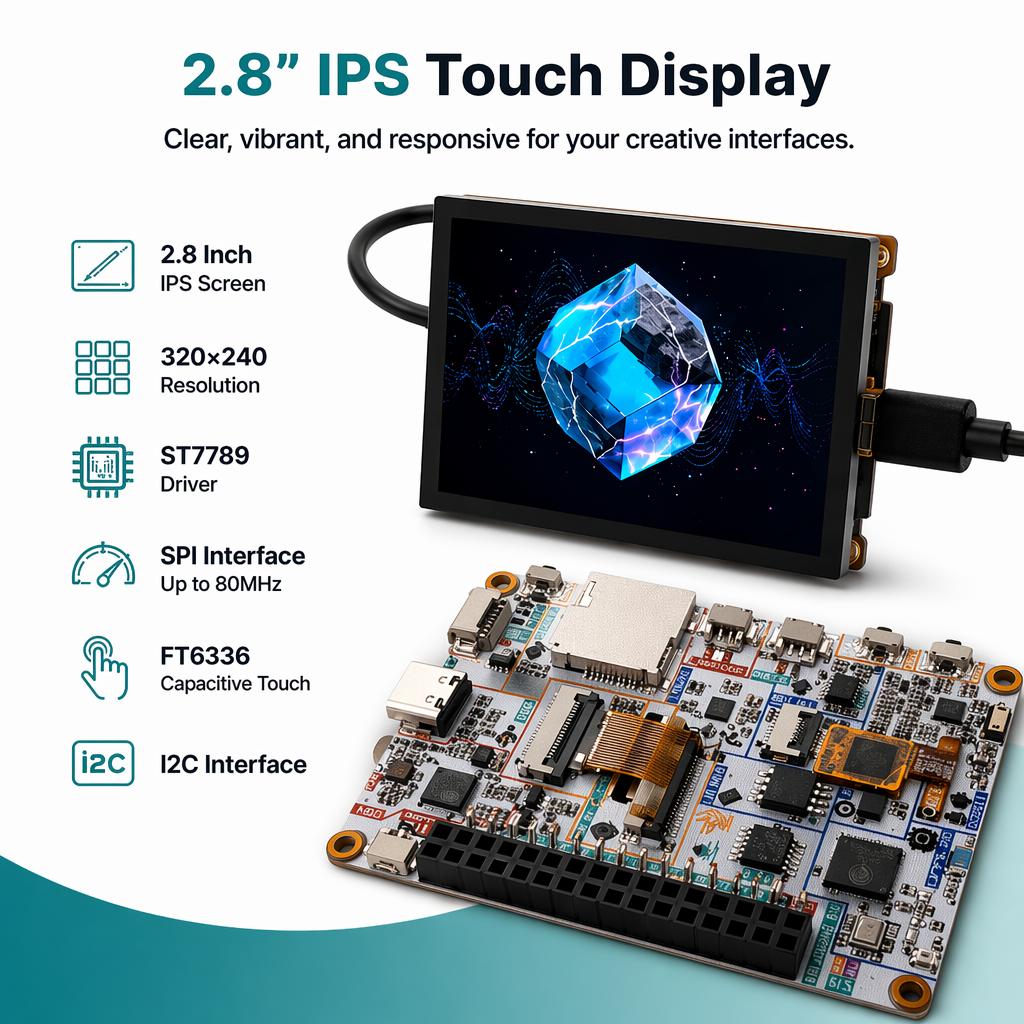

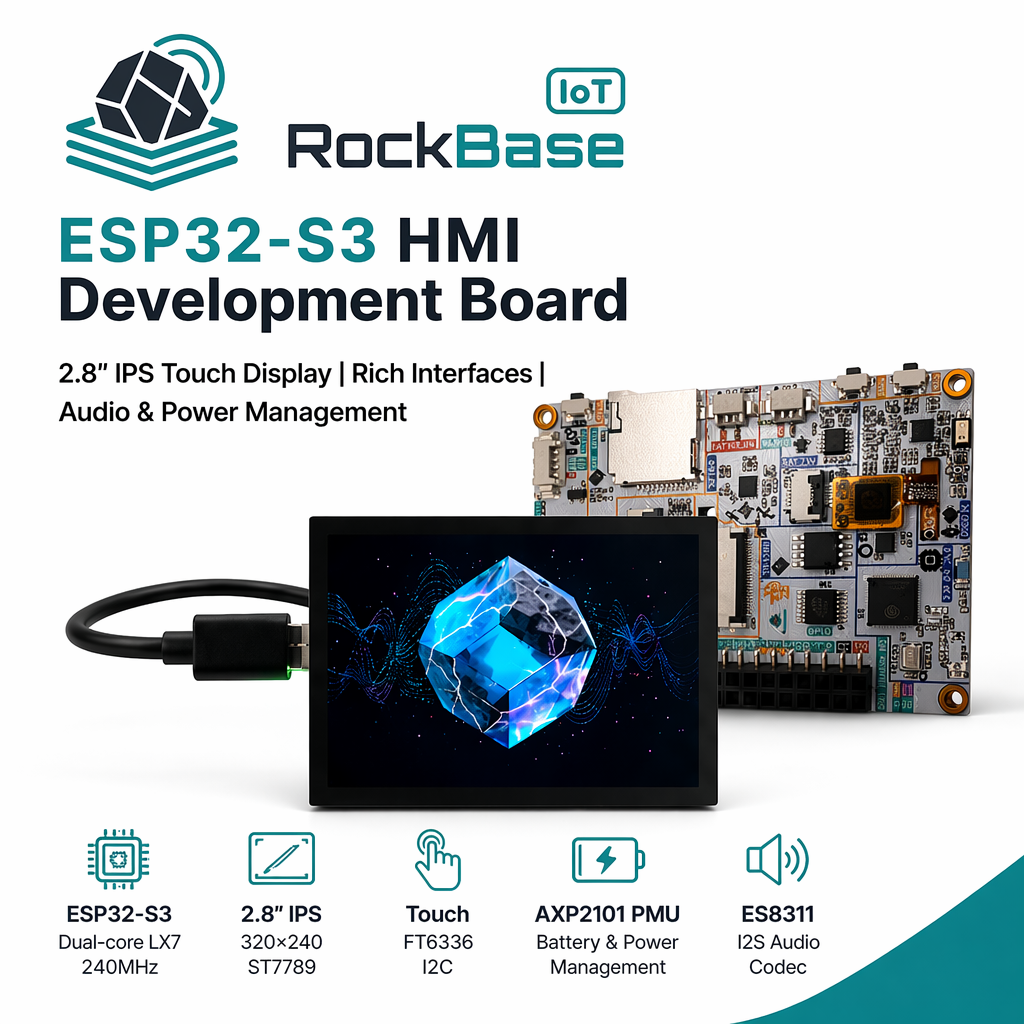

The NM-Display-2.8 is a low-cost IoT display development board based on the ESP32-S3, featuring a 2.8" IPS touchscreen, 6-axis IMU, RTC, audio codec, and power management IC. It is suitable for smart home control panels, IoT Human-Machine Interface (HMI), and edge AI Agent display terminals.
Key Features
| Features | Details |

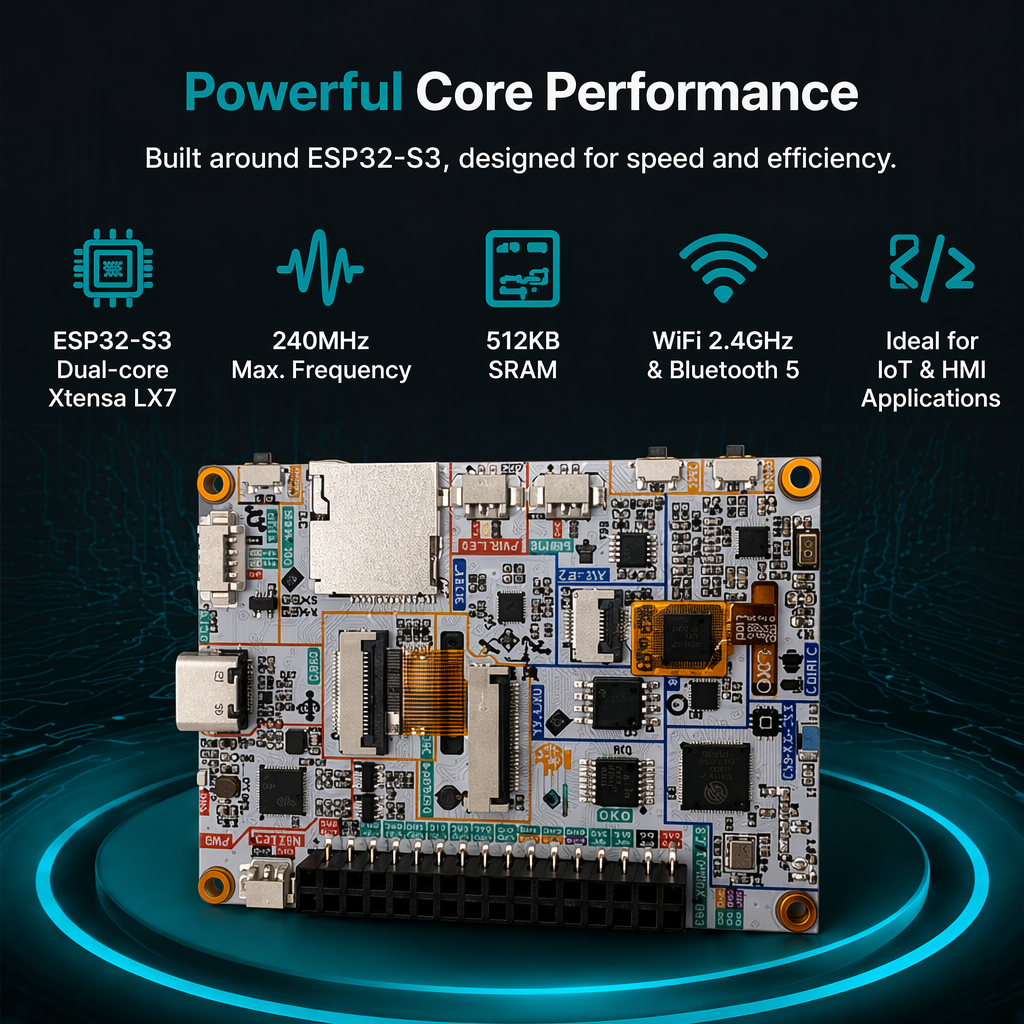

| MCU | ESP32-S3 Dual-core Xtensa LX7, 240MHz |
| RAM | 512KB + 8MB PSRAM |
| FLASH | 16 MB SPI Flash |
| Wireless | IEEE 802.15.4 b/g/n, Bluetooth 5.0 LE |
| Display | 2.8" ST7789, 320*240 pixels |
| Touch | FT6336 capacitive touch (I2C) |
|
Resolution
|
320*240 RGB
|
|
Interface
|
USB Type-C ( power/programming)
|
Onboard Resources
- QM18658 ( 6-axis accelerometer / gyroscope)
- PCF85063 Real-Time clock

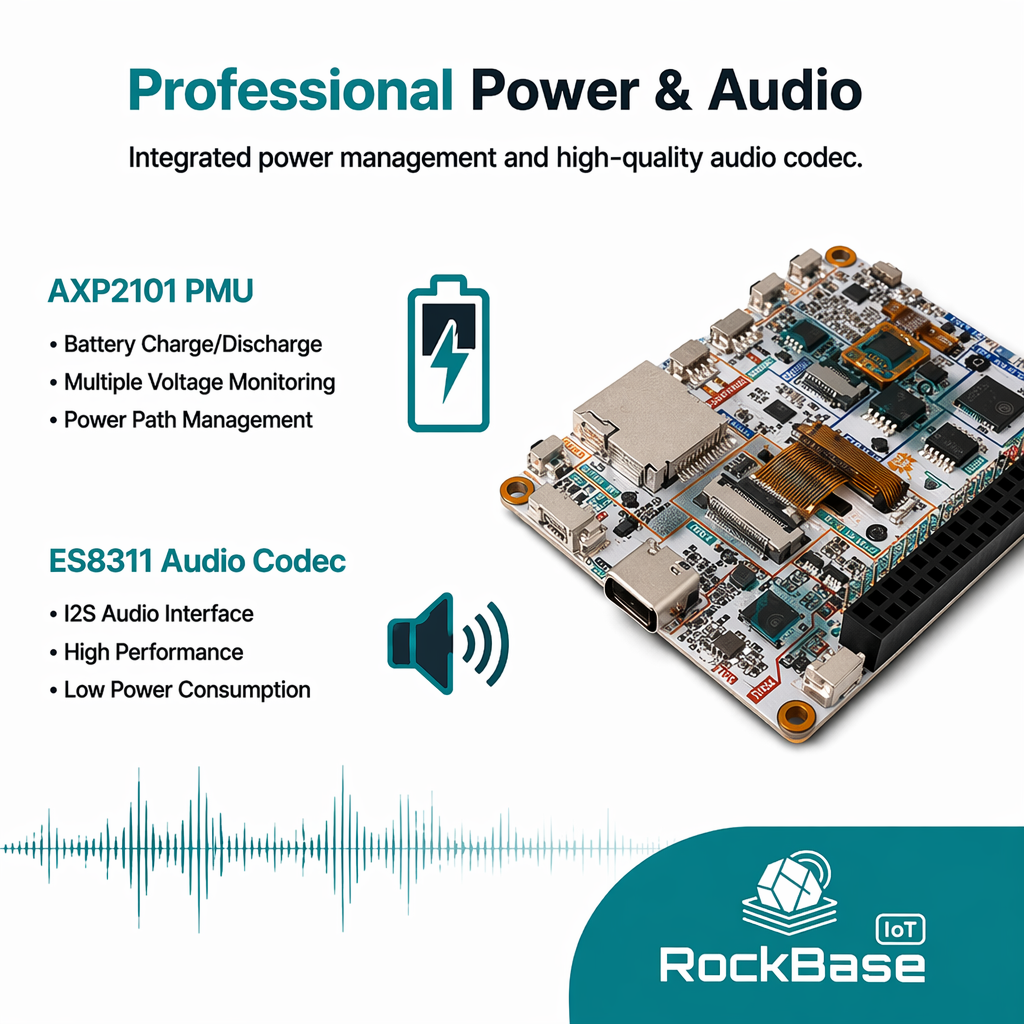

- ES8311 ( I2S) Audio Codec
- AXp2101 PMU
- TCA9554 IO Expander
- OV series DVP interface
- SD Card

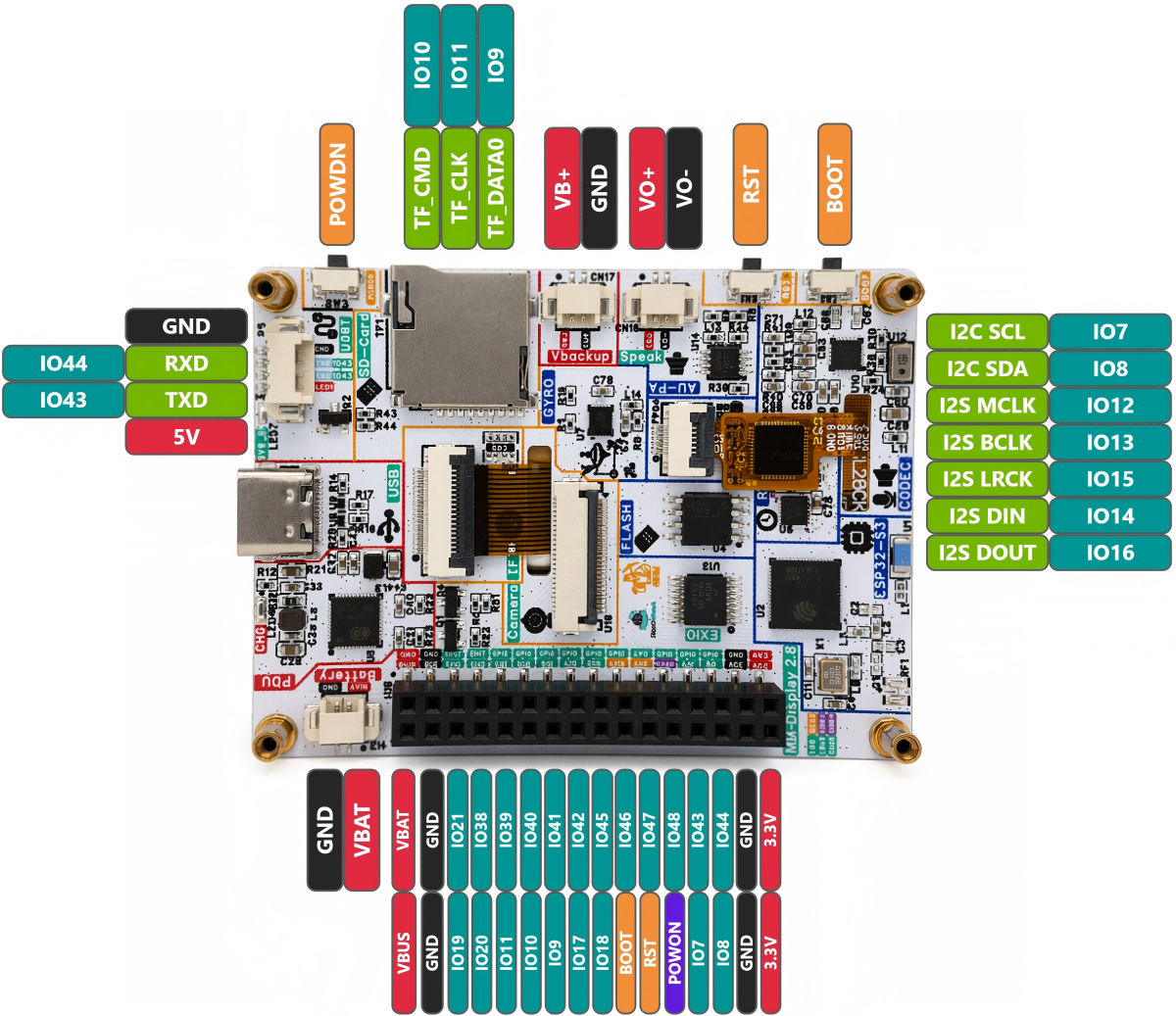

NM-Display-28inch Pinout
Package List
Reference Resources
